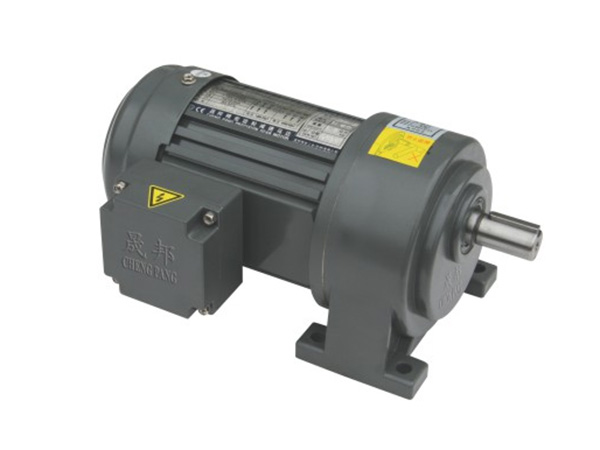

晟邦卧式附三相铝壳(剎车)马达减速机CH..S(CH..SB)

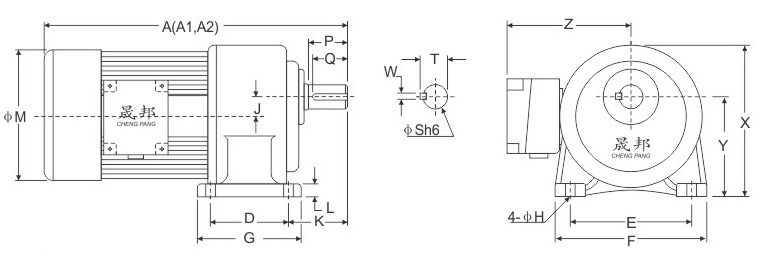

| 出力軸尺寸 | |||||
| 出力軸 | 鍵槽 | 鍵 | |||
| Sh6 | P | W | T | Q | SPEC' |
| ∮18 | 30 | 5 | 20.2 | 27 | 5*5*27 |
| ∮22 | 40 | 7 | 25 | 35 | 7*7*35 |
| ∮28 | 45 | 7 | 31.1 | 40 | 7*7*40 |
| ∮32 | 55 | 10 | 35.5 | 50 | 10*8*50 |
| ∮40 | 65 | 10 | 43.5 | 60 | 10*8*60 |
| ∮50 | 80 | 14 | 54 | 75 | 14*9*75 |
適用機型： CH..S, CH..ST, CH..SB, CH..STB單位(MM)
| 馬力 | 減速比 | 本體 | 型番(S) | A | A1 | A2 | D | E | F | G | H | J | K | L | M | X | Y | Z |
| 100W 1/8HP | 3-50 | 1# | 18 | 250 | 250 | 250 | 40 | 110 | 135 | 65 | 9 | 16 | 50 | 10 | 133 | 138 | 88.5 | 120 |
| 60-200 | 2# | 22 | 280 | 280 | 280 | 65 | 130 | 158 | 90 | 11 | 17.5 | 60 | 13 | 133 | 152 | 97.5 | 120 | |
| 200W 1/4HP | 3-10 | 1# | 18 | 285 | 285 | 285 | 40 | 110 | 135 | 65 | 9 | 16 | 50 | 10 | 133 | 138 | 88.5 | 120 |
| 15-90 | 2# | 22 | 315 | 315 | 315 | 65 | 130 | 158 | 90 | 11 | 17.5 | 60 | 13 | 133 | 152 | 97.5 | 120 | |
| 100-200 | 3# | 28 | 350 | 350 | 350 | 90 | 140 | 178 | 120 | 11 | 23 | 68 | 17 | 133 | 178 | 116 | 120 | |
| 400W 1/2HP | 3-10 | 2# | 22 | 330 | 330 | 330 | 65 | 130 | 158 | 90 | 11 | 17.5 | 60 | 13 | 167 | 152 | 97.5 | 135 |
| 15-90 | 3# | 28 | 360 | 360 | 360 | 90 | 140 | 178 | 120 | 11 | 23 | 68 | 17 | 167 | 178 | 116 | 135 | |
| 100-200 | 4# | 32 | 395 | 395 | 395 | 130 | 170 | 210 | 165 | 13 | 30 | 70 | 23 | 167 | 212 | 140 | 135 | |
| 750W 1HP | 3-25 | 3# | 28 | 380 | 380 | 380 | 90 | 140 | 178 | 120 | 11 | 23 | 68 | 17 | 167 | 178 | 116 | 135 |
| 30-120 | 4# | 32 | 410 | 410 | 410 | 130 | 170 | 210 | 165 | 13 | 30 | 70 | 23 | 167 | 212 | 140 | 135 | |
| 125-200 | 5# | 40 | 465 | 465 | 465 | 150 | 210 | 265 | 198 | 15 | 36 | 89 | 24 | 167 | 250 | 162 | 135 | |
| 1500W 2HP | 3-30 | 4# | 32 | 450 | 450 | 450 | 130 | 170 | 210 | 165 | 13 | 30 | 70 | 23 | 192 | 212 | 140 | 146 |
| 40-100 | 5# | 40 | 510 | 510 | 510 | 150 | 210 | 265 | 198 | 15 | 36 | 89 | 24 | 192 | 250 | 162 | 146 | |
| 110-180 | 6# | 50 | 560 | 560 | 560 | 170 | 265 | 321 | 238 | 18 | 51 | 120 | 31.5 | 192 | 308 | 200 | 146 | |
| 2200W 3HP | 3-40 | 5# | 40 | 520 | 520 | 520 | 150 | 210 | 265 | 198 | 15 | 36 | 89 | 24 | 220 | 250 | 162 | 160 |
| 45-100 | 6# | 50 | 580 | 580 | 580 | 170 | 265 | 321 | 238 | 18 | 51 | 120 | 31.5 | 220 | 308 | 200 | 160 | |
| 3700W 5HP | 3-10 | 5# | 40 | 560 | 560 | 560 | 150 | 210 | 265 | 198 | 15 | 36 | 89 | 24 | 220 | 250 | 162 | 160 |
| 15-150 | 6# | 50 | 620 | 620 | 620 | 170 | 265 | 321 | 238 | 18 | 51 | 120 | 31.5 | 220 | 308 | 200 | 160 |
