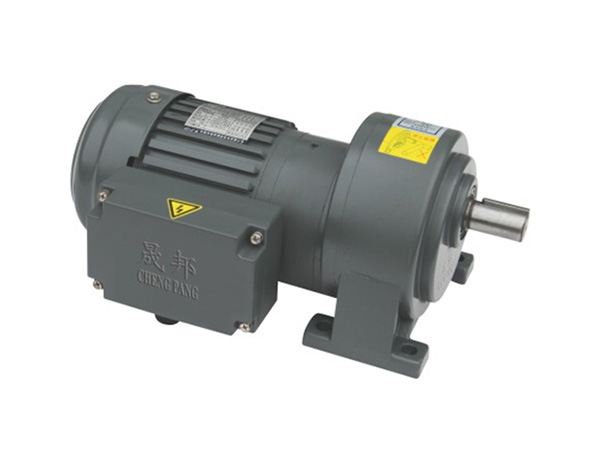

晟邦卧式高速比附三相铝壳(剎车)马达减速机CH..S(CH..SB)
| 出力軸尺寸 | |||||
| 出力軸 | 鍵槽 | 鍵 | |||
| Sh6 | P | W | T | Q | SPEC' |
| ∮28 | 45 | 7 | 31.1 | 40 | 7*7*40 |
| ∮32 | 55 | 10 | 35.5 | 50 | 10*8*50 |
| ∮40 | 65 | 10 | 43.5 | 60 | 10*8*60 |
| ∮50 | 80 | 14 | 54 | 75 | 14*9*75 |
適用機型： CH..S, CH..ST, CH..SB, CH..STB

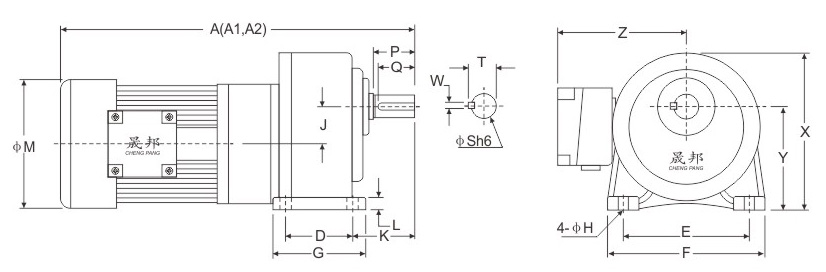

| 馬力 | 減速比 | 本體 | 型番(S) | A | A1 | A2 | D | E | F | G | H | J | K | L | M | X | Y | Z |
| 100W 1/8HP | 250-1800 | 1#+3# | 28 | 370 | 370 | 370 | 90 | 140 | 178 | 120 | 11 | 39 | 68 | 17 | 133 | 178 | 116 | 120 |
| 200W 1/4HP | 250-1800 | 2#+4# | 32 | 470 | 470 | 470 | 130 | 170 | 210 | 165 | 13 | 47.5 | 70 | 23 | 133 | 212 | 140 | 120 |
| 400W 1/2HP | 250-1800 | 3#+5# | 40 | 550 | 550 | 550 | 150 | 210 | 265 | 198 | 15 | 59 | 89 | 24 | 167 | 250 | 162 | 135 |
| 750W 1HP | 250-1800 | 3#+6# | 50 | 620 | 620 | 620 | 170 | 265 | 321 | 238 | 18 | 74 | 120 | 31.5 | 167 | 308 | 200 | 135 |
| 1500W 2HP | 250-1800 | 4#+6# | 50 | 690 | 690 | 690 | 170 | 265 | 321 | 238 | 18 | 81 | 120 | 31.5 | 192 | 308 | 200 | 146 |
備註： A :三相鋁殼馬達 ; A1 :三相鐵殼馬達 ; A2 :三相馬達附剎車器 ;
