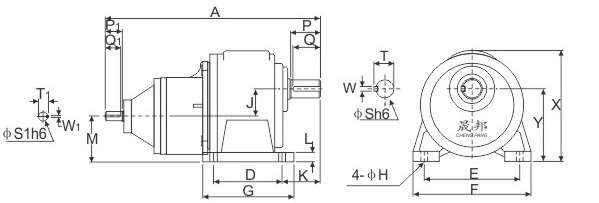

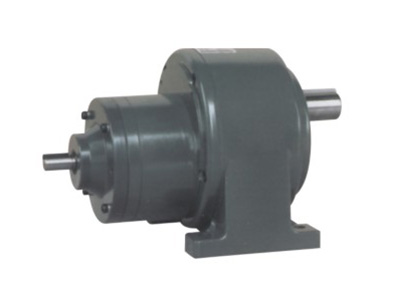

晟邦卧式双轴高速比齿轮减速机CHD
| 入力軸尺寸 | ||||||
| 入力軸 | 鍵槽 | 鍵 | ||||
| KW | S1 h6 | P1 | W1 | T1 | Q1 | SPEC' |
| 0.1 | 14 | 25 | 5 | 16.2 | 22 | 5*5*22 |
| 0.2 | 14 | 25 | 5 | 16.2 | 22 | 5*5*22 |
| 0.4 | 16 | 30 | 5 | 18.2 | 27 | 5*5*27 |
| 0.75 | 19 | 40 | 6 | 21.7 | 35 | 6*6*35 |
出力軸尺寸 | |||||
出力軸 | 鍵槽 | 鍵 | |||
Sh6 | P | W | T | Q | SPEC' |
∮28 | 45 | 7 | 31.1 | 40 | 7*7*40 |
∮32 | 55 | 10 | 35.5 | 50 | 10*8*50 |
| ∮40 | 65 | 10 | 43.5 | 60 | 10*8*60 |
∮50 | 80 | 14 | 54 | 75 | 14*9*75 |
單位(MM)
馬力 | 減速比 | 型番(S) | A | D | E | F | G | H | J | K | L | M | X | Y |
| 100W 1/8HP | 250-1800 | 28 | 290 | 90 | 140 | 178 | 120 | 11 | 39 | 68 | 17 | 77 | 178 | 116 |
200W 1/4HP | 250-1800 | 32 | 340 | 130 | 170 | 210 | 165 | 13 | 47.5 | 70 | 23 | 92.5 | 212 | 140 |
400W 1/2HP | 250-1800 | 40 | 455 | 150 | 210 | 265 | 198 | 15 | 59 | 89 | 24 | 103 | 250 | 162 |
750W 1HP | 250-1800 | 50 | 515 | 170 | 265 | 321 | 238 | 18 | 74 | 120 | 31.5 | 126 | 308 | 200 |
