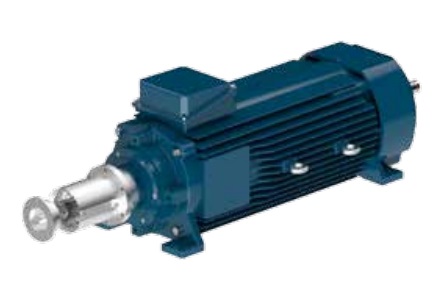

AKH 平机座电机
AKH 平机座电机
Specifications
Shaft height: 75 to 190 mm
Power: up to 132 kW
Speed range: up to 12.000 rpm
Duty cycle: S1
Cooling: IC 411 (self-ventilated)
Voltage: 400 V / 50 Hz
Insulation class: F
Mounting: IM B35
Degree of protection: IP 54
Vibration severity grade: A
Ambient temperature: 20 to 40 °C
Options of electrical design
Increased rated power for intermittent operation S6
Efficiency classes IE 2, IE 3
Optimized for frequency converter operation
With external fan
Dimensioning as 2, 4 or 6- pole motors
Pole-changing motors 4/2 or 8/4–pole
Special voltages and -frequencies
Insulation class H
Higher ambient temperature and installation altitude
Winding temperature monitoring by thermo switch, PTC resistor or Pt100
Anti-condensation heating
